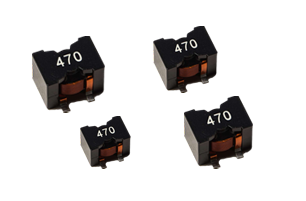

Flat Wire High Current Inductor
THC(Commercial Grade)
FEATURES
?High saturation current up to 100A
?Low losses with flat wire design
?Low core losses with Mnzn core material
APPLICATION
?High current DC/DC converter
?LC filter
FEATURES
?High saturation current up to 100A
?Low losses with flat wire design
?Low core losses with Mnzn core material
APPLICATION
?High current DC/DC converter
?LC filter
| Picture | Serial No. | Dimension(mm) | Inductance(μH) | Temperature Rise Current(A) | Saturation Current(A) | DC Resistance(mΩ) | Download |
 | THC2012 | 21.8*22.5*12.0 | 0.47~33.0 | 14.0~45.0 | 7.0~75.0 | 0.45~8.17 |  |
| THC2015 | 21.8*22.5*14.5 | 2.2~47.0 | 13.0~28.0 | 7.0~55.0 | 1.7~12.3 | |
| THC2017 | 21.8*22.5*16.5 | 4.7~47.0 | 12.0~21.0 | 6.5~45.0 | 3.3~1 | |
| THC2815 | 27.9*27.9*15.4 | 1.5~33.0 | 30 | 2.6~100 | 1.6 | |
| THC2818 | 27.9*27.9*17.8 | 1.0~33.0 | 28.0~60.0 | 8.7~120 | 0.5~2.6 | |
 | THCE2012 | 22.5*21.5*12.5 | 1.5~22.0 | 14.0~30.0 | 10.0~60.0 | 1.6~6.5 | |
| THCE2015 | 22.5*21.5*14.5 | 1.2~33.0 | 16.0~28.0 | 9.0~65.0 | 2.3~9.5 | |
| THCE2818 | 28.0*27.0*18.5 | 2.2~33 | 30 | 8.7~100 | 2.5 | |
